Raymarine

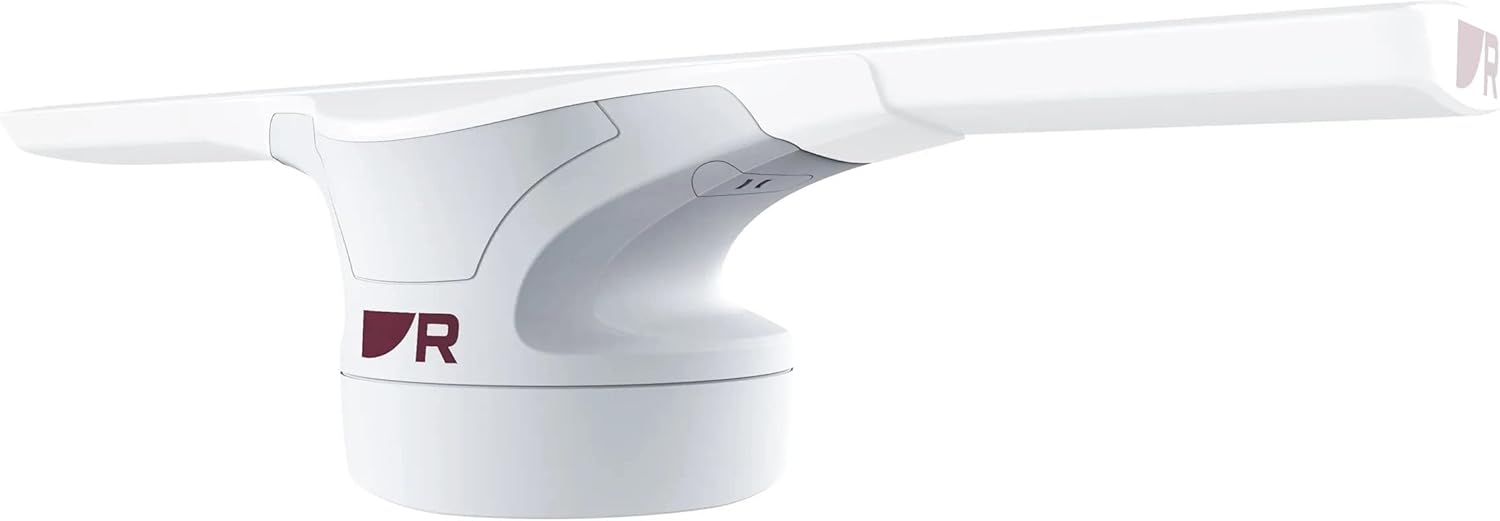

Raymarine E70620 - Cyclone 55W Open Array Radar Pedestal (GEAR BOX) ONLY Without Cable
Raymarine E70620 - Cyclone 55W Open Array Radar Pedestal (GEAR BOX) ONLY Without Cable
Regular price
$5,249.00 USD
Regular price
Sale price
$5,249.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Buy Now On Amazon Link----> https://amzn.to/4cSHVOO <----Link
The Raymarine E70620 Cyclone 55W Open Array Radar Pedestal (Gear Box) is sold as a standalone unit, compatible with various Raymarine chartplotters including Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays, typically requiring a LightHouse Hvar 3.16 software update for full compatibility.
This 55-watt pedestal delivers 6kW equivalent magnetron performance with a maximum range of 72 nautical miles and a rapid boot-up time of 40 seconds. It is engineered for extreme marine conditions, boasting a 100-knot wind rating, and features a low-profile design with a built-in cable gland for a cleaner installation.
Key Specifications & Features
- Model Number: E70620
- Power Output: 55 watts (6kW equivalent magnetron performance)
- Max Range Scale: 72 nautical miles (some sources also mention up to 96 nm using CHIRP pulse compression)
- Rotation Speed: Adjustable from 12 to 60 RPM for 360-degree awareness and accurate target tracking.
- Design: Solid-state open array pedestal with an aerodynamic white design.
- Compatibility: Seamlessly integrates with Raymarine Axiom, Axiom+, Axiom Pro, and Axiom XL multifunction displays.
- Power Input: Operates on 12V or 24V DC, requiring a VCM100 power converter (sold separately) to convert to 32V DC for the radar.
- Durability: Engineered for extreme conditions with a 100-knot wind rating and meets the commercial-grade IEC 62388 standard for shipborne radar.
- Included: The pedestal comes with a 33-foot radar data cable and a power cable. Note that the antenna array (3, 4, or 6-foot) is sold separately.
- Innovative Technologies: Features include Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging for superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening
Buy Now on Amazon Link---> https://amzn.to/4cSHVOO <----Link
