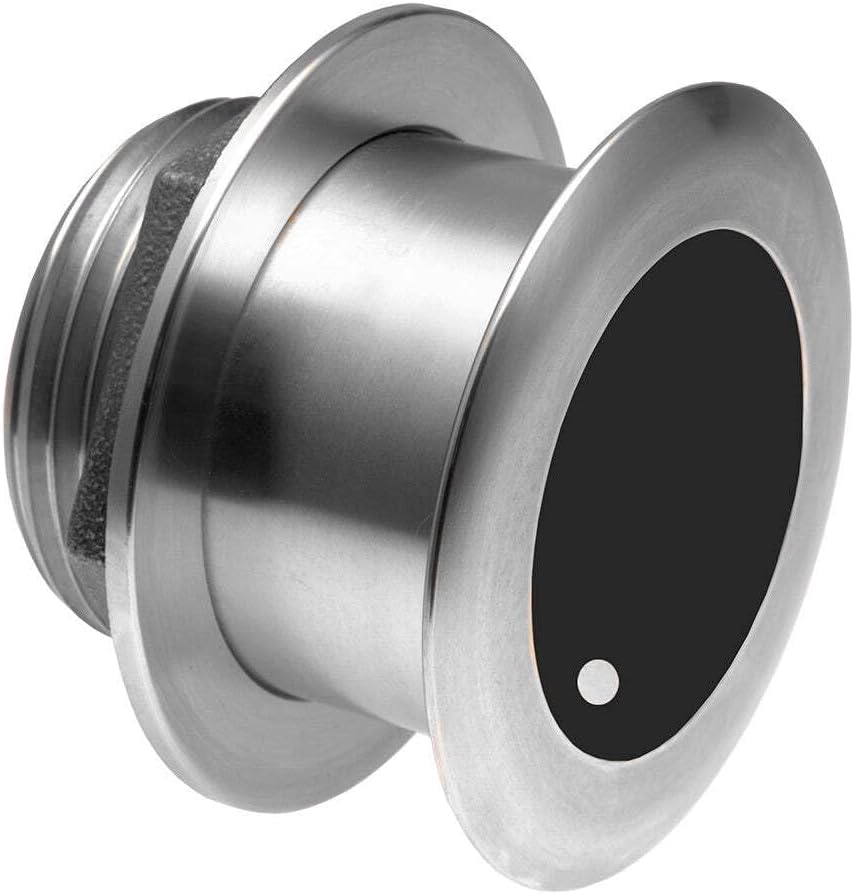

Simrad 000-13782-001 xSonic SS175H-W/20 Chirp Transducer 20° 1kW Tilted Element, silver
Simrad 000-13782-001 xSonic SS175H-W/20 Chirp Transducer 20° 1kW Tilted Element, silver
Regular price
$1,719.42 USD
Regular price
Sale price
$1,719.42 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Buy Now on Amazon Link -----> https://amzn.to/4cU85AJ <-----Link
Simrad 000-13782-001 xSonic SS175H-W/20 is a 1kW, 20-degree Chirp thru-hull transducer that transmits across the 130-210 kHz bandwidth, providing bottom detection down to 1,000 feet and is suitable for boats up to 10m (35ft) in length with a 20° to 24° hull deadrise.
This stainless steel transducer is designed for excellent target separation, making it easier to distinguish between baitfish, game fish, and underwater structures. It comes with a 9-pin connector and a 10m (33.0 ft) cable. While the color "silver" was part of your query, product descriptions often refer to the stainless steel housing, which has a silver appearance.
Key Features and Specifications:
- Part Number: 000-13782-001
- Transducer Type: Single-channel CHIRP thru-hull
- Material: Stainless Steel
- Power: 1kW
- Frequency Range: 130-210 kHz (High CHIRP)
- Beam Width: Wide (often around 25° for the wide-beam variant)
- Depth Capability: Up to 1,000 feet (300m+)
- Tilted Element: 20°, ideal for boats with a 20° to 24° hull deadrise.
- Cable Length: 10 meters (33.0 feet)
- Connector: 9-pin black connector
- Optimal for: Boats up to 10 meters (35 feet) in length.
Installation Considerations: Proper installation of a thru-hull transducer is crucial for optimal performance. This involves carefully measuring the hull deadrise to ensure the correct tilt is selected (0°, 12°, or 20°), drilling the necessary holes, and ensuring a watertight seal with marine-grade sealant like 3M 4200. Correct alignment of the temperature sensor with the keel is also important. Some users have found that consulting other boat owners or watching installation guides can be beneficial.
Compatibility: This transducer is designed to be compatible with Simrad chartplotters, including models like the Simrad NSS Evo3S. It is manufactured by Airmar, a leading producer of marine transducers, and rebranded for Simrad. You may also see it listed under "Navico," which is the parent company of Simrad
